Iridium® Satellite Communications

Voice and data service via satellite globally available

Iridium completed a multi-year constellation upgrade in early 2019, replacing all its satellites and upgrading the supporting ground infrastructure. A leader in the industry, Iridium enables products and services that are ideally suited for markets requiring reliable connections and critical communications such as maritime, aviation, and land, as well as government and military groups around the world.

At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium® satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional networks are unavailable.

Interconnected by advanced fiber-optic and broadband satellite links, the Iridium ground infrastructure consists of the Satellite Network Operating Center (SNOC), Ground Stations, and Technical Support Center, which together provide terrestrial connections for mobile satellite voice and data; network command, control, and monitoring; and technical support.

Iridium Certus®: With speed capabilities ranging from 22 to 1408 Kbps, Iridium Certus is an award-winning, advanced multi-service platform enabled by the upgraded Iridium constellation. Offering the highest L-Band data throughput, Iridium Certus provides the flexbility to scale device speed, size, and power requirements, both up and down, based on the needs of end-users.

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

Iridium 9555 is a dependable, ruggedly built tool, not a toy. It won’t play games, take pictures, or play MP3s. What it will do is work. Everywhere.

Features (extract):

  • High voice quality
  • 200 character illuminated graphic display
  • 100 entry internal address book, with capacity for multiple phone numbers, email addresses and notes
  • Battery: up to 4 hours talk time and 30 hours of stand-by
  • Weight (incl. battery): 266 g
  • Dimensions: 143 x 55 x 30 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

Iridium Extreme is engineered with an expansive feature set and wide range of accessories, providing people with more opportunities to connect and keep in contact anytime, anywhere.

Features (extract):

  • Water- and dust protection IP 65
  • High voice quality
  • GPS-enabled location-based services and online tracking
  • Satellite Emergency Notification via SOS button
  • Reliable two-way global coverage
  • 200-character, daylight-readable display
  • 100 entry internal address book, with capacity for multiple phone numbers, email addresses and notes
  • Battery: up to 4 hours talk time and 30 hours of stand-by
  • Weight (incl. battery): 247 g
  • Dimensions: 140 x 60 x 27 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

The Iridium 9575 PTT is a combination of satellite phone and push-to-talk device. With Iridium’s constellation of 66 crosslinked Low-Earth Orbit satellites, Iridium Push-to-Talk is built for speed, allowing you to connect with your team instantly and securely, anywhere on the planet. All transmissions are sent using AES-256 encryption – one of the most secure standards available.

Iridium Push-to-Talk is simple to set up and adjust as your needs change. Using the Iridium PTT Command Center, you can define coverage areas and user talkgroups quickly and easily.

Features (extract):

  • Water- and dust protection IP 65
  • High voice quality
  • GPS-enabled location-based services and online tracking
  • Satellite Emergency Notification via SOS button
  • Reliable two-way global coverage
  • 200-character, daylight-readable display
  • 100 entry internal address book, with capacity for multiple phone numbers, email addresses and notes
  • Battery in satellite mode: up to 6.5 hours talk time and 54 hours of stand-by
  • Battery in PTT: up to 5 hours talk time and 16.5 hours of stand-by
  • Weight (incl. battery): 268 g
  • Dimensions: 140 x 60 x 32 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

High-Speed Satellite Terminal for fixed installations and coms on the move

MissionLINK on Iridium operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications.

Features (extract):

  • Water and dust protection IP 66 antenna
  • 3 high quality voice lines
  • Location tracking
  • PTT ready
  • Standard IP with up to 700/352 kbps (down/up)
  • Streaming IP up to 256 kbps
  • 3x LAN port
  • 1x WAN port for cellular connection
  • RJ-14 POTS
  • WiFi access point 802.11 b/g
  • Size: 305 x 229 x 76 mm terminal / 102 x Ø356 mm antenna
  • Weight: 6.6 kg

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

The IC-SAT100 provides a true Land Mobile Radio experience with an IP67-rated durable housing, large front-ported speaker for loud audio, a top mounted on/off volume selector, talkgroup selector for “no-look” operation, and a field replaceable antenna. Icom offers a large portfolio of Land Mobile Radio accessories for the radio to enhance the customers communication requirements.

Features (extract):

  • Water- and dust protection IP 67
  • Access to Iridium Push-To-Talk Service
  • One-to-Many Communications
  • Talkgroup Scan
  • Priority Interrupt Calling
  • Emergency Button
  • Vibration Alert
  • Built-in Bluetooth and GPS Receiver
  • 1500 mW Powerful Audio
  • Battery: up to 7 hours talk time and 24 stand-by
  • Weight (incl. battery): 360 g
  • Dimensions: 135 x 58 x 33 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

Satellite WiFi-Hub

Iridium GO! enables satellite connectivity for your mobile devices where terrestrial networks cannot. Simply flip up the integrated antenna and the battery-powered unit connects quickly and automatically to the Iridium LEO satellite constellation, enabling connectivity for your smartphone or tablet within an approximate 30 meter (100 foot) radius.

Features (extract):

  • Water- and dust protection IP 65
  • Global pole-to-pole voice and data communications
  • Versatile communications solution: voice calls, SMS, email access, social networks, photo sharing, GPS tracking, SOS alert, etc.
  • Compatible with smartphones (Apple and Android), tablets and laptops
  • Easy to set-up: simply flip up the integrated antenna and the unit will automatically connect to the Iridium network
  • Multi-user capability: the Wi-Fi hotspot can connect up to 5 devices
  • Affordable solution: one worldwide rate for calling, eliminates cellular roaming charges.
  • Battery: up to 7.5 hours talk time and 15.4 hours of stand-by
  • Weight (incl. battery): 305 g
  • Dimensions: 114 x 83 x 32 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

The GESAT MessageTracker is a handheld device for tracking, status transmission and emergency call transmission. The device works via the Iridium satellite network.

Messages can be sent as well as received.

Features (extract):

  • Supports Iridium SBD data service
  • AES 256-bit encryption
  • 50-channel GPS receiver
  • Audio alerting
  • USB interface (for charging the battery)
  • Battery: Li-Ion, approx. 1200 position reports with hourly transmission for approx. two months
  • Weight (including battery): 184 g
  • Dimensions: 102 x 56 x 20 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

The GESAT Message Tracker 3G is a handheld satellite tracker with upgraded 3G capability. It has a resistive touchscreen allowing quick access to menus and ease of entering text via on-screen soft keyboards under a wide range of environmental conditions.

Messages can be sent as well as received on SBD and SMS.

Features (extract):

  • Supports Iridium SBD data service
  • AES 256-bit encryption
  • 50-channel GPS receiver
  • Audio alerting
  • USB interface (for charging the battery)
  • Battery: Li-Ion, can send a position report every ten minutes for more than ten days (more than 1,600 reports)
  • Weight (including battery): 230 g
  • Dimensions: 127 x 61 x 23 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

Model 9602-A Tracker is an ultra-low power consumption tracker designed for SBD data communication using the Iridium satellite network.

Features (extract):

  • Supports Iridium SBD data service
  • Integrated Iridium and GPS antennas
  • AES 256-bit encryption
  • GPS Sensitivity of -160dBm
  • Standby current of less than 65µA
  • Wide input voltage ranges from 5V to 32V
  • Internal Motion Sensor
  • Two (2) RS232 level I/Os for sensor interfaces
  • Seven (7) TTL/CMOS level I/Os for sensor interfaces
  • Weight: 179 g
  • Dimensions: 69 x 55 x 32 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

Model 9602-AB is a variant of the Model 9602-LP Tracker with internal Iridium and GPS antennas and a Li-ion battery. It is designed for SBD data communication using the Iridium satellite network.

Features (extract):

  • Supports Iridium SBD data service
  • Integrated Iridium and GPS antennas and battery
  • AES 256-bit encryption
  • GPS Sensitivity of -160dBm
  • Standby current of less than 65µA
  • Wide input voltage ranges from 5V to 32V
  • Internal Motion Sensor
  • Two (2) RS232 level I/Os for sensor interfaces
  • Seven (7) TTL/CMOS level I/Os for sensor interfaces
  • Battery: Li-Ion, capable of sending more than 1,500 tracking reports with report rate set to less than two hours
  • Weight: 227 g
  • Dimensions: 95 x 55 x 31 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

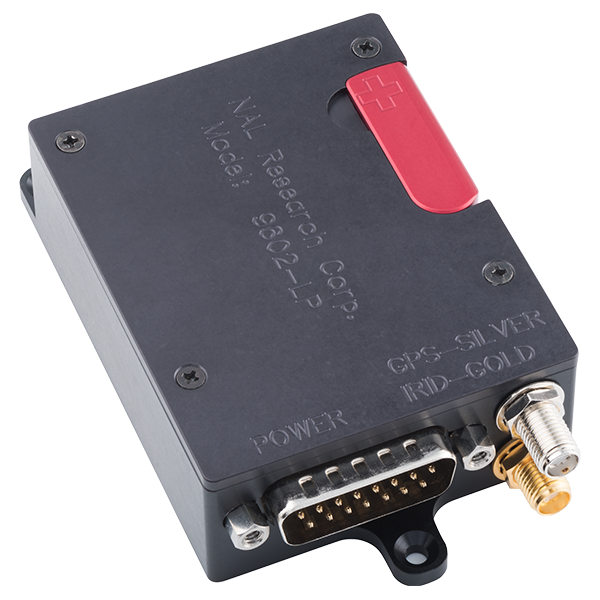

Model 9602-LP is an ultra-low power consumption tracker designed for SBD data communication using the Iridium® satellite network. It suits helicopters, fixed wing aircraft, unmanned aerial vehicles, rockets, high altitude balloons, ships, speed-boats, remote controlled ground vehicles (without antennas).

GESAT has the aviation approval available.

Features (extract):

  • Supports Iridium SBD data service
  • Integrated Iridium and GPS antennas and battery
  • AES 256-bit encryption
  • GPS Sensitivity of -160dBm
  • Standby current of less than 65µA
  • Wide input voltage ranges from 5V to 32V
  • Internal Motion Sensor
  • Two (2) RS232 level I/Os for sensor interfaces
  • Seven (7) TTL/CMOS level I/Os for sensor interfaces
  • Weight: 136 g
  • Dimensions: 69 x 55 x 24 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.

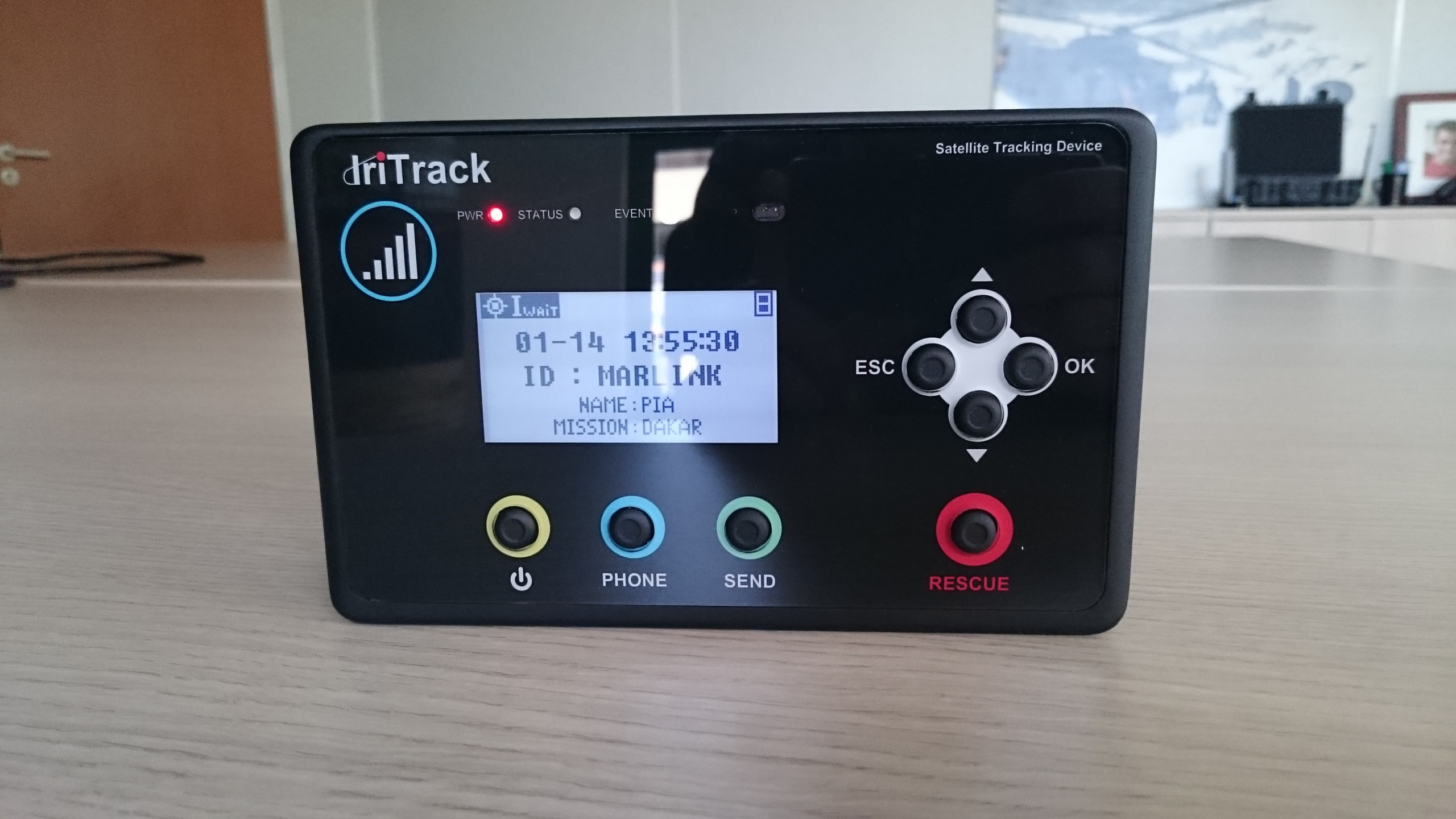

The Iritrack is a tracking unit with voice via Iridium and ensures security, active tracking and communications on vehicles, airplanes, helicopters or vessels.

IriTrack is a global complete tracking solution inclusive global voice and it works around the globe, on the high seas, in the mountains and in the air.

Features (extract):

  • Supports real time satellite tracking via Iridium SBD data service
  • Integrated Iridium satellite telephone capabilities
  • Emergency / assistance call
  • LCD-Display
  • Inbuilt Micro/Speaker
  • Internal battery
  • Inclinometer and accelerometer
  • Weight (including battery): 700 g
  • Dimensions: 180 x 112 x 53 mm

For further details and to answer your questions, we will be happy to advise you.

As an airtime provider, you get everything from a single source (equipment, installation and the monthly billing) and you have only one contact person for all matters – GESAT GmbH.
